30 Pin DF19G-30S Hirose 1.0mm Pitch Connector to DF19 LVDS Cable
This high-quality LVDS cable features a 30-pin DF19G-30S Hirose 1.0mm pitch connector to DF19 configuration, designed specifically for TV and DVD applications. Built with 30AWG wire for optimal signal transmission.
Product Specifications
| Specification |
Details |
| Cable Type |
32AWG, 30AWG, 28AWG, 26AWG; LCD 20/32 cores single/double shield cable; LCD 20/32 cores non-shield cable |
| Cable Color |
Black/Grey |
| Connectors |
JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic |
| Cable Length |
50mm - 15000mm |
| Processing Methods |
Crimping, pressing, and soldering types |
| Pin Out Connection |
Customized per customer request (provide LCD and main board datasheets) |
| Connector Pitch Range |
0.3mm - 4.2mm |
| Characteristics |
Excellent signal transfer, clear picture quality, stable performance without shaking or transfer issues |
| ISO Certificate |
ISO9001:2008 |
| Additional Certifications |
ISO/RoHS/UL |
| Performance Testing |
100% electrical and electricity performance test |
Key Advantages
Direct manufacturing factory
Competitive pricing with quality assurance
Short lead times
OEM/ODM services available
LVDS Cable Applications
- Displays and monitors
- PCs and computers
- Flat screen TVs
- Printers, scanners, fax machines, copiers
- Sound systems
- Liquid crystal displays
- Car DVD systems
- Digital cameras
- Airbag systems
- Inkjet printers
- Medical imaging equipment
LVDS cables are essential for signal transmission and internal layout in various fields including display systems, flat television sets, printers, scanners, computers, digital cameras, video cameras, fax machines, copiers, and Agilent test equipment.

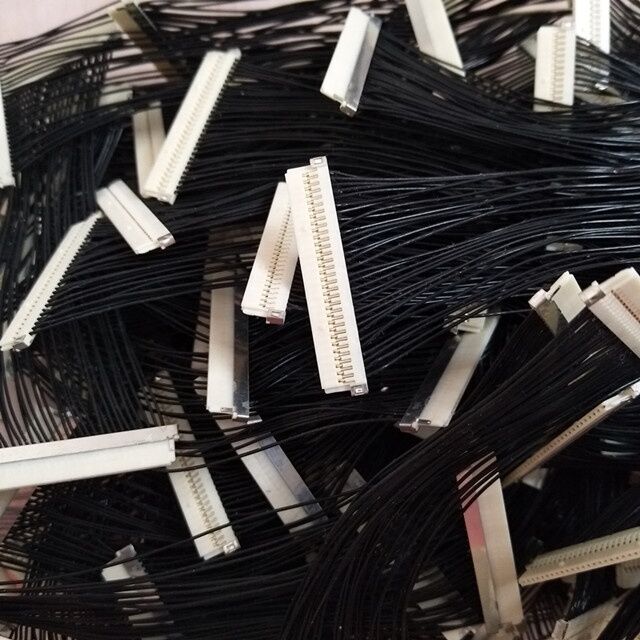

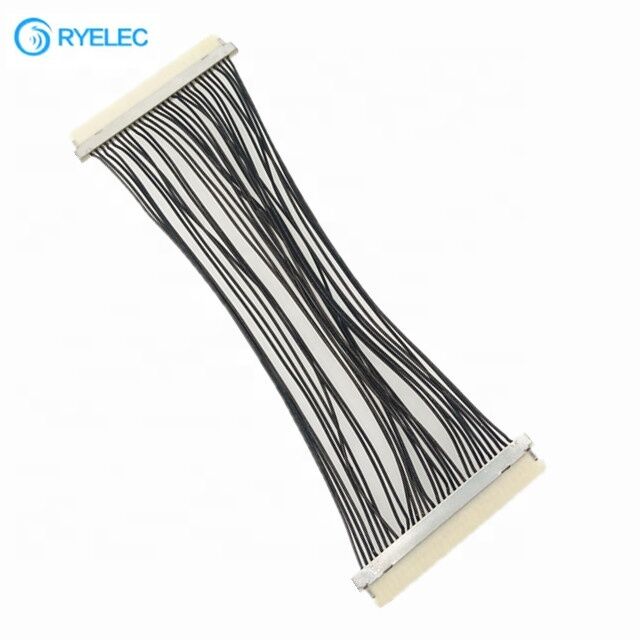

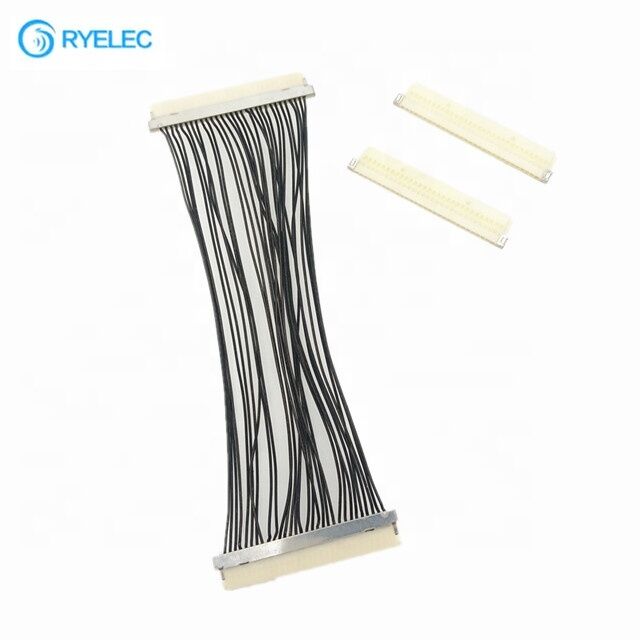

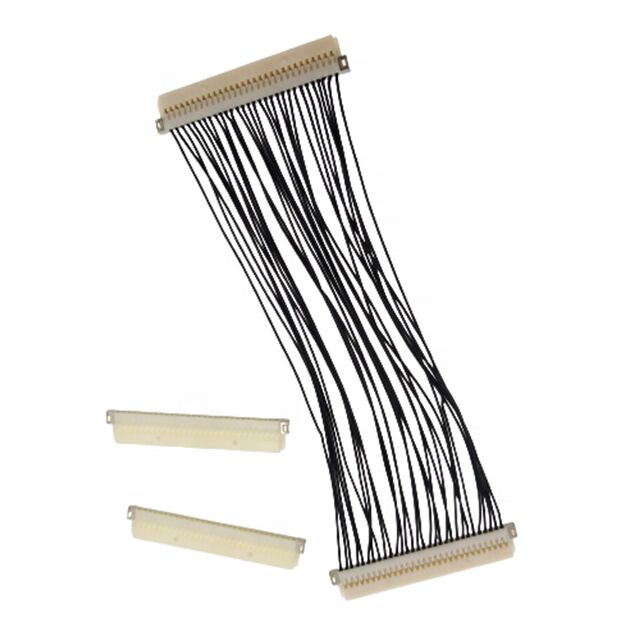

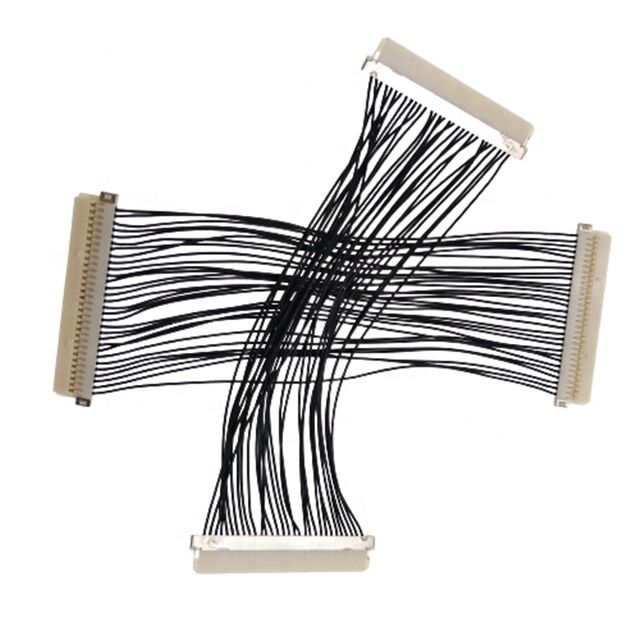

Product Images
About RY Electronics
RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in both large and small volumes to meet your specific requirements.
Our manufacturing facilities specialize in producing various types of custom cable assemblies including LVDS cables, flat cables, RF cables, wire harnesses, as well as GPS, WIFI, ISM, GSM, 3G, 4G antennas and RF connectors.
Company Advantages
Quality Control: Most products have UL, CE, ROHS certifications. ISO9001:2008 certified.
Low MOQ: 5pcs/10pcs/20pcs/50pcs depending on product type.
Fast Delivery: 2-15 days with on-time delivery guarantee.
After-Sales Service: Technical support and return services available quickly.
Warranty: 1-year product warranty.
Custom Services: Comprehensive OEM/ODM services.
Trade Assurance: 100% product quality protection, on-time shipment protection, and payment protection.
Certifications

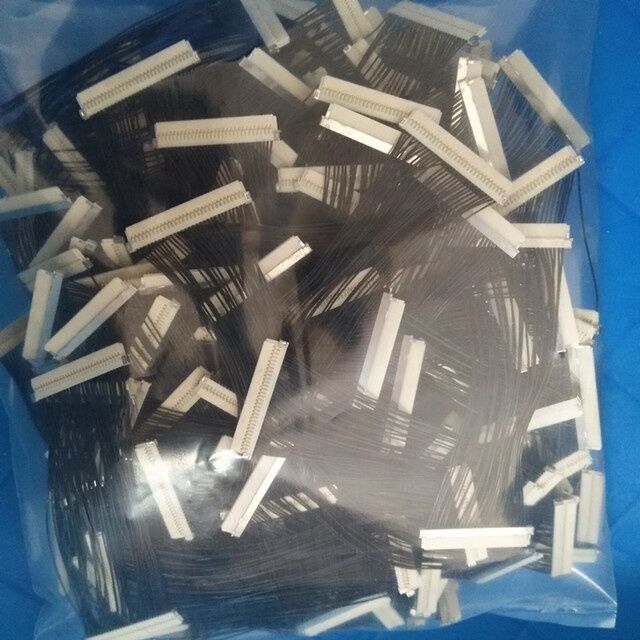

Packing & Delivery
Frequently Asked Questions
When can we get the reply?
Any inquiries will be replied within 24 hours.
Can I get some samples?
Yes, sample orders are available for quality check and market testing. Freight collect payment applies.
What's the delivery time?
Sample production: 1-3 days. Product production: 3-7 days.
What's your payment term?
We primarily accept T/T payments, with other payment methods available through negotiation.
What about quality problems?
For any quality issues or questions, we provide technical support or return services promptly.
How to contact us?
Send your inquiry details below and click "Send" now! Free samples and comprehensive answers are waiting for you.
